Wismec Sinuous P228 Mod

Introduction

SINUOUS P228, designed by sinuous designs in USA, is powered by dual replaceable 18650 cells whose max output reaches 228W/50A. The application of plated USB ports contact makes it possible to realize 2A quick charge. And the separate battery power can be detected accurately through the upgradable firmware. Moreover, with the help of RC (reverse charging) adapter, SINUOUS P228 can serve as a power bank to charge other electronic devices.

Parameter

Battery Weight: 166.2g
Size: 43.6mm*29mm*86.7mm
Thread Type: 510 spring loaded thread
Cell type: High-rate 18650 cell (discharge current should be above 25A)
Output Mode: VW/TC-Ni/TC-Ti/TC-SS/TCR Mode
Output Wattage: 1-228W
Resistance Range: 0.05-1.5ohm for TC modes
0.1-3.5ohm for VW mode
Temperature Range: 100-315°C/200-600°F (TC modes)
Maximum Charging Current: 2A
Maximum Output Current: 50A
Output Voltage Range: 0.5-9V

Standard Configuration

1*Sinuous P228 (no cells)
1*QC USB Cable
1*User Manual
1*Warning Card

228W/50A Max Output with Dual 18650 Cells

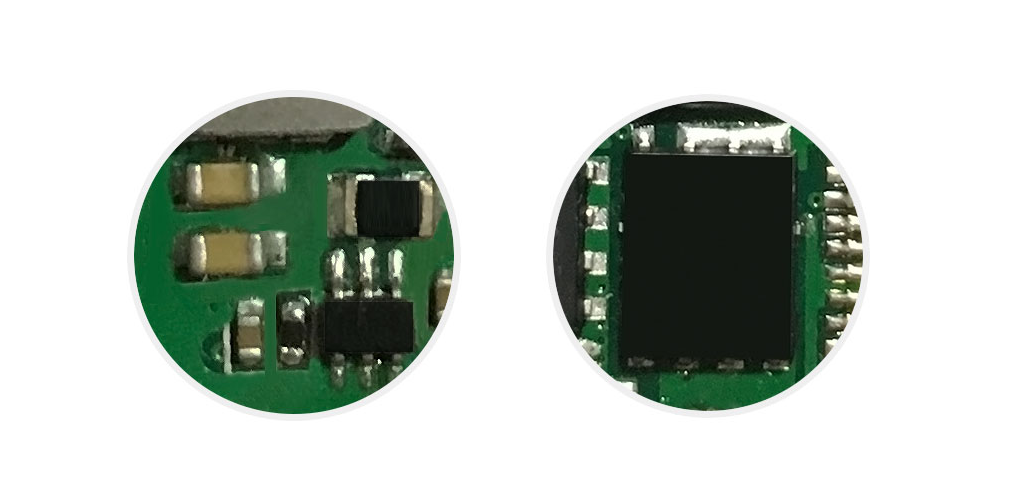

Dual Circuit Protection & Reverse Polarity Protection
