Wismec Sinuous RAVAGE230 Mod

Introduction

Differing from the conventional e-cigs, SINUOUS RAVAGE230 impresses us with its 1.45inch large color display and updated centered 510. Powered by dual replaceable 18650 cells, SINUOUS RAVAGE230 is able to output 200 watts and has 2A quick charge capability. Exquisite, stylish yet powerful, the SINUOUS RAVAGE230 can offer you more than you can imagine.

Parameter

Size: 43.6*30.0*83.4mm
Weight: 147.3g
Thread Type: 510 spring loaded connector
Cell Type: high-rate 18650 cell (discharging current should be above 25A)
Output Mode: VW/TC-Ni/TC-Ti/TC-SS/TCR mode
Output Wattage: 1-230W
Resistance Range: 0.05-1.5ohm for TC modes
0.1-3.5ohm for VW mode
Temperature Range: 100-315°C/200-600°F (TC modes)
Maximum Charging Current: 2A
Maximum Output Current: 50A
Output Voltage Range: 0.5-9V

Standard Configuration

1 * SINUOUS RAVAGE230 (no cells)
1 * QC USB Cable
1 * User Manual
1 * Warning Card

Exquisite, Stylish yet Powerful

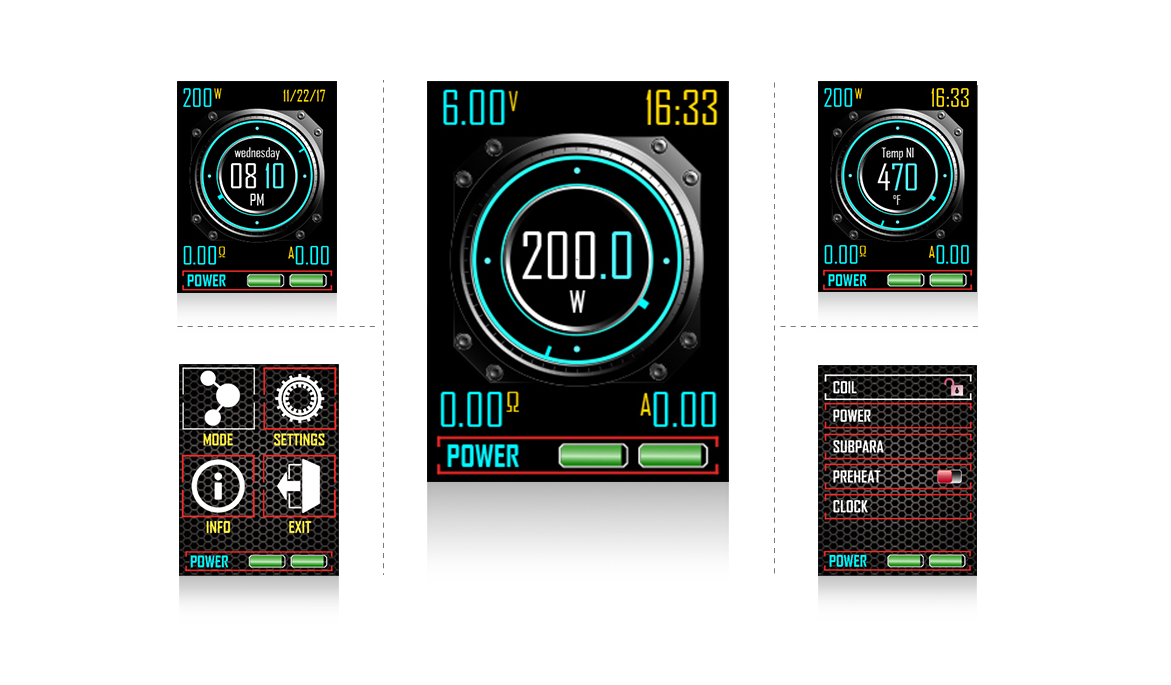

Quick Menu, Customize Your Vaping

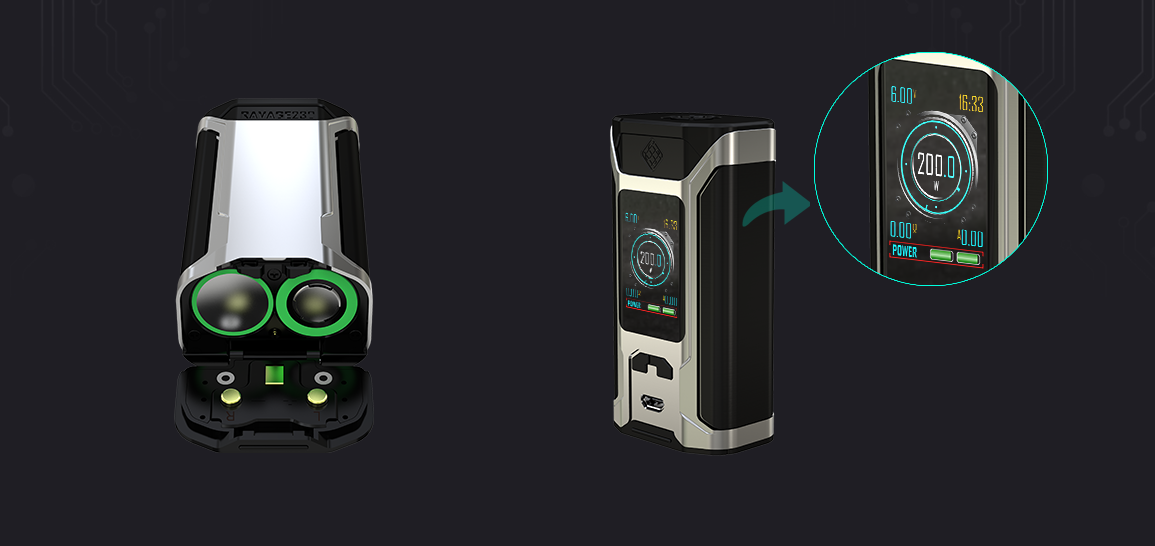

Dual 18650 Cells with 200W Max Output

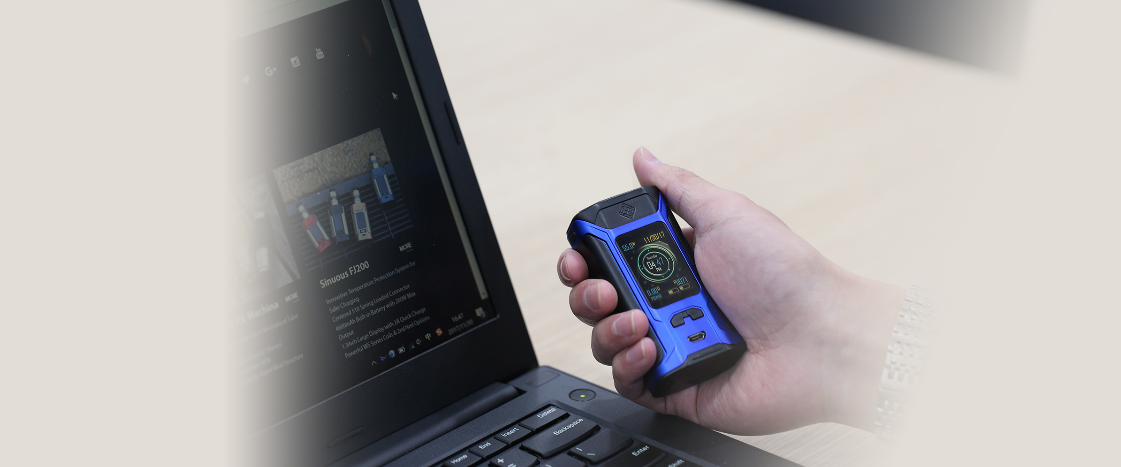

Upgradeable Firmware with Real-time Clock
